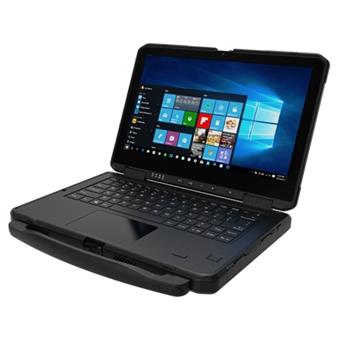

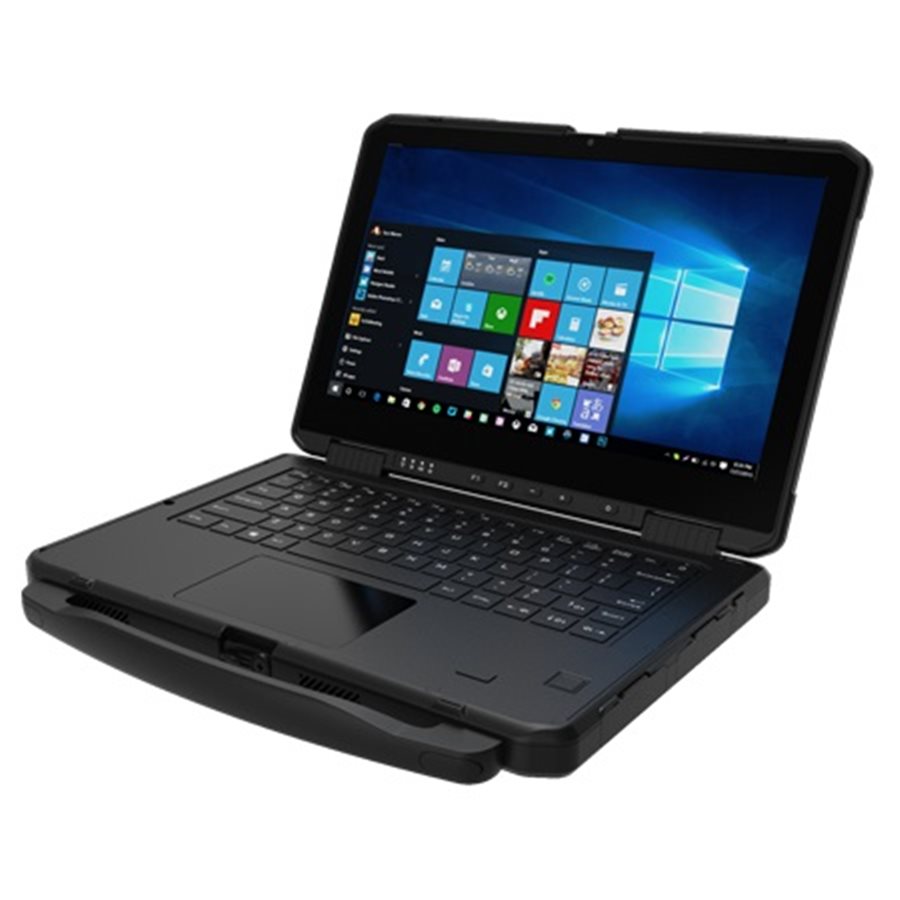

Winmate/ L140AD-3/ i5-1235U/ 13,3"/ FHD/ T/ 8GB/ 256GB SSD/ Iris Xe/ W10H/ Black/ 1R

Odolný konvertibilní notebook L140AD-3 s procesorem Intel® Core™ i5-1235U a operačním systémem Windows 10 IoT Enterprise. L140AD-3 podporuje rozsáhlé možnosti bezdrátového připojení, jako je Wi-Fi, BT, GPS/ GLONASS a 4G LTE (volitelně), aby byli pracovníci ve spojení i na těch nejodlehlejších místech. Také je vybaven 13.3palcovým panelem 1920 x 1080 s možností čtení za denního světla, přímým optickým spojením, úpravou proti odleskům a uživatelsky přívětivou projekční kapacitní dotykovou obrazovkou. Řada L140AD nabízí novou generaci kompaktní a lehké přenosnosti v robustním provedení.

Vlastnosti:
12th Gen. Intel® Processor Family – Alder Lake Processor
13.3” 1920 x 1080 LED panel with direct optical bonding laptop
Antiglare technology for sunlight readability
Dual battery with hotswappable design for wholeday work
Flip design for quick switching between rugged laptop and rugged tablet modes
Magnesium alloy enclosure with double injection for drop protection
Integrated smart card reader

Display
Resolution 1920×1080
Size 13.3 inches
Contrast Ratio 1000:1
Panel Brightness 500 nits
View Angles 89,89,89,89
Bonding Optical Bonding for Sunlight Viewability
Type Projected Capacitive Multi Touch

System Specification
Processor
Intel Core i51235U (up to 4.4GHz)

Memory
8GB SODIMM DDR4-2133
16GB SODIMM DDR4-2133 (Optional)
32GB SODIMM DDR4-2133 (Optional)

Storage
256GB M.2 SSD
512GB M.2 SSD (Optional)
1TB M.2 SSD (Optional)
2TB M.2 SSD (Optional)
Additional storage available with up to 2TB M.2 (PCIe NVMe) SSD,self-encrypted. (Optional)

Security
Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System
Windows 10 IoT Enterprise (64 bit)
Wi-fi Support
BT Support
WWAN 4G LTE (Optional)
GNSS GPS/GLONASS
RFID HF RFID (Optional)
Smart Card Reader Smart Card Reader (Optional)
Fingerprint Scanner Fingerprint scanner (Optional)

Camera
Front Camera 2MP front camera
Rear Camera 8MP rear camera with autofocus and LED light (Optional)

Mechanical
Dimension 340 x 230 x 38 mm
Weight 2.5kg
Cooling System Fanless thermal design

IO Ports
USB Port 1 x USB 2.0 (Type A), 2 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
Serial Port 1 x RS232 (DB9)
SD Card Slot 1 x Micro SDXC Slot
SIM Card Slot 1 x Nano SIM card slot
Video 1 x HDMI 4K Output (Optional)
Audio 1 x Audio Jack (mic in/line out)
LAN 1 x RJ45-10/100/1000 GigaLAN port
Indicator 4x LED Indicator for Power, Battery, HDD, RF status
Docking Connector 1 x docking connector

Environment
Operating Humidity 10% to 90% RH, non-condensing
Operating Temperature -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature -30°C to 70°C
Shock MIL-STD-810H Method 516.8 Procedure I
Vibration MIL-STD-810H Method 514.8 Procedure I
IP rating IP65 certified, dustproof and waterproof
Drop MIL-STD-810H Method 516.8, 3 ft

Certification
Certification CE, FCC

Security Function
SOTI MobiControl SOTI MobiControl Compliance
Kensington Lock Kensington Lock Support

Control
Button 1 x Power, 2 x volume key,
2 x Programmable Function Keys
QWERTY keyboard with RGB backlight

Power
Battery Hotswappable 2 x 11.55V, typ. 3220 mAh LiIon Battery (3S1P)
Battery Operating Time Standard Battery: 11 hours
Power Rating 19V DC
Adapter 100-240V, 50-60Hz (19V DC)

Accessory
Accessory
Adapter and Power Cord
Standard Battery

Optional Accessory
Spare Battery (Optional)
Battery Charger (Optional)
Vehicle Charger (Optional)
